OMEGA
29"

Specifications

  • OMEGA MTB Alloy
  • SR SUNTOUR XCM32 15x100mm TRAVEL 100mm
  • SHIMANO Deore RD-M4120 SGS
  • SHIMANO DEORE SL-M4100, 10-SPEED RAPIDFIRE PLUS
  • SHIMANO MT200 HYDRAULIC DISC
  • BAFANG CK A01 170MM
  • EXTEND 11-42T 10speed
  • KMC X10eS E-BIKE TRIPPLE X DURABILITY
  • EXTEND H868P, 1 1/8" - 1,5" TAPPERED
  • EXTEND D6122, 8°, 31,8mm, 60mm
  • EXTEND ALLOY RISER
  • EXTEND ABSORBIC Silicone 130mm
  • EXTEND Alloy 31.6x350mm
  • Extend MERGO 269x156mm
  • SHIMANO MT400 HG BOOST
  • WTB ST i27 TCS 2.0 29"
  • EXTEND GRIZZLY ALL BLACK 29x2,25"
  • Extend Alloy Black
  • 1x10
  • BAFANG M400 MAX DRIVE MM G330 80Nm, 36V, 250W, pedal (speed& torque) sensor CANBUS
  • ZZ303 Samsung 35E 36V 17.5Ah/630Wh CANBUS Smart BMS
  • BAFANG DP C18.CAN 36V, LCD color screen

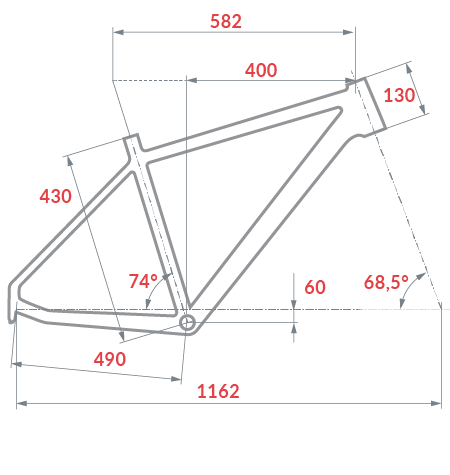

Geometry, size selection

Frame size
17"

Manuals

Technologies

Increased efficiency in the transfer of energy to the rear wheel is referred to as HP-C. This technology has been incorporated into the elaborate rear construction of all DEMA carbon frames.

This technology offers the possibility to use heat processed 3D frame endings with interesting shapes. Their advantage, compared to milled endings, is the increased strength of the material.

An aluminum alloy containing Mg2S silicides as its main additive is referred to as Alloy 6061. Class 6000 alloys are highly workable, weldable, and machinable.

Tepelná úprava rámov zahriatím na teplotu 130 °C po dobu niekoľkých hodín je proces obnovenia mechanických vlastností, ktoré boli stratené počas zvárania.

Všetky rúrky našich rámov sú na zákazku prispôsobené na základe pevnostných analýz a potrieb dizajnu celého bicykla.
